QHY5III462C Camera Extension Pack Version
The QHY5III462C camera uses the latest (Sixth Generation) Sony 2.1 megapixel IMX462 STARVIS CMOS sensor. The pixel size is 2.9u making it the same size and resolution as the sensor used in the QHY5III290 camera that has been so successfully used for planetary imaging by some of the best planetary imagers in the world. Like other cameras in the 5III series, the QHY5III462C is USB 3.0 powered and controlled. No additional power is required.
The IMX462 sensor is back-illuminated and incorporates new technology that gives it some significant advantage over other planetary cameras: First, the IMX462 sensor has sHCG (Super High Conversion Gain) for very low read noise at high gain. This is ideal for stacking hundreds or thousands of short planetary images. Second, it is exceptionally sensitive in the NIR.
In this latest generation of sensors, the photodiode portion of the pixel well is physically deeper than in previous Sony BSI sensors, allowing photons of longer wavelength to penetrate deeper into the substrate. This dramatically increases the sensor’s sensitivity to red and near infrared (NIR) light. The RGB filters over the pixels become transparent at NIR wavelengths, so the sensor displays almost equal peak sensitivity to NIR light as it does to light in the visible spectrum.
The peak QE in the NIR around 800nm is as high as the peak QE in the visible wavelengths. For planetary imagers using a methane filter that passes light around 880nm this is welcome news.

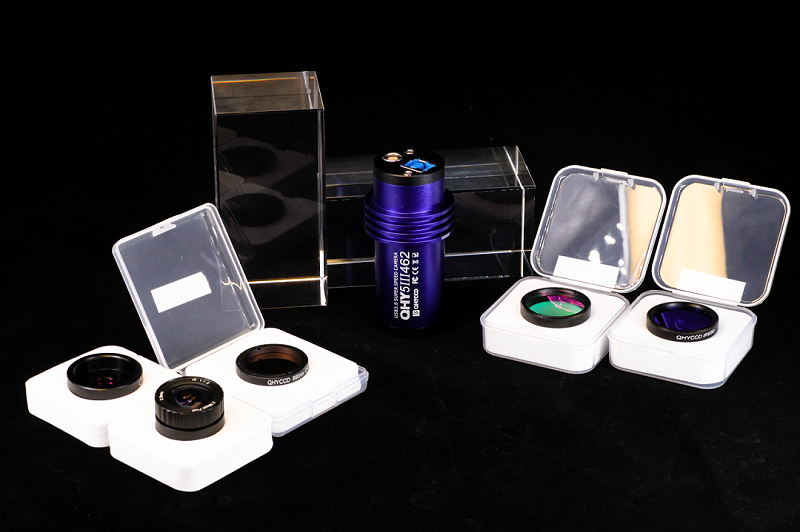

QHY5III462C has two versions:
cam+ 1.25inch UV/IR Cut Filter + 1.25inch IR850 Filter
IR890nm CH4 Filter (for Jupiter/Saturn imaging)+2.5mm f/1.2 CS Lens (for allsky imaging)+CS lens Adapter
Standard Vresion+Extension Pack
||QHY5III462C (Color and Enhanced Near Infrared)
||SONY IMX462 CMOS
||2.9um x 2.9um
|Effective Pixel Area
||1920 x 1080
|AD Sample Depth
||12-bit (output as 16-bit and 8-bit)
||Typical 1/2.8 inch
|Full Frame Rate
||Full Resolution 135 FPS@8-bits (USB3.0 Port）
|ROI Frame Rate
||Higher rates at selected fields of interest (Supports any region ROI)
|Exposure Time Range
||Electronic Rolling Shutter
|Optic Window Type
||Changeable 1.25-inch filter as optical window
(Includes free 1.25-inch UV/IR cut filter and free 1.25-inch IR850 filter)
|Back Focal Length
