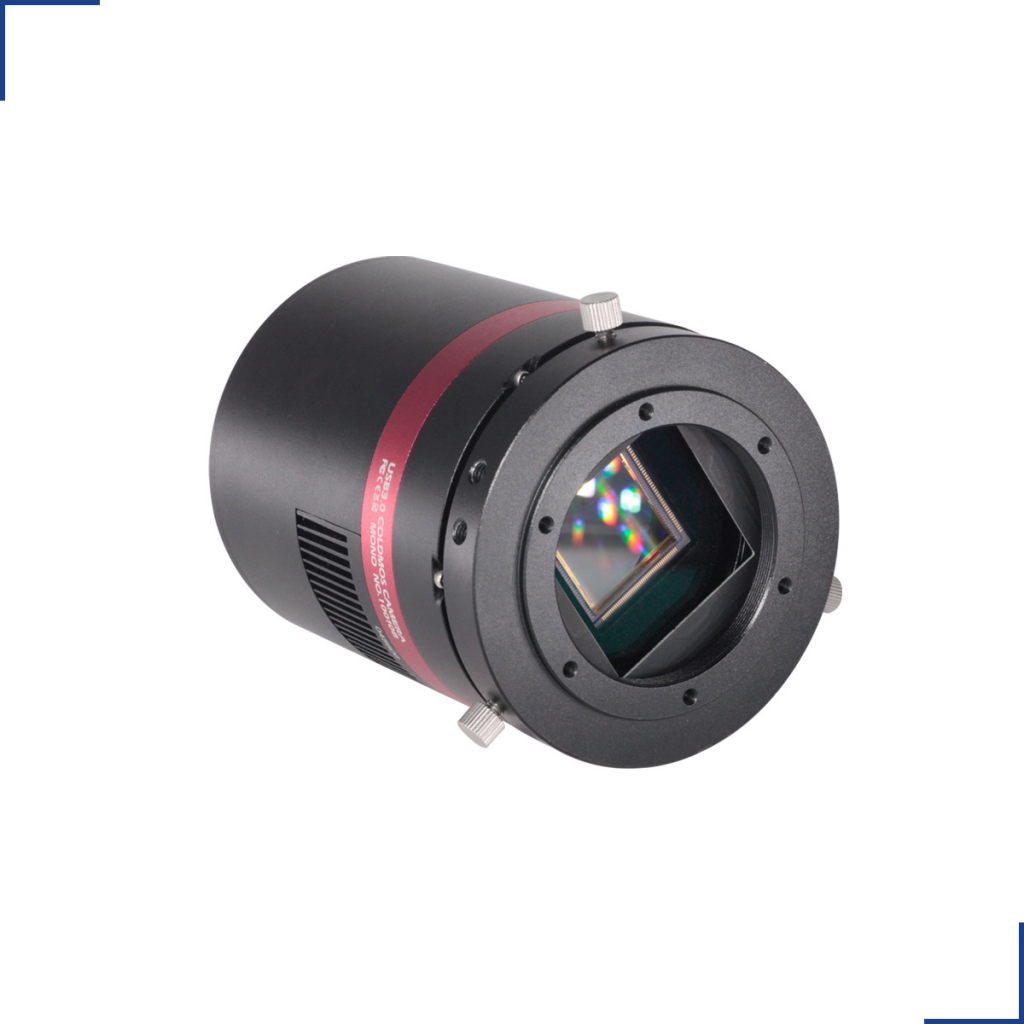

QHY42 UV CLASS 2 (UNCOOLED)



The standard version has 2-stage TE cooling and a USB3.0 interface. The camera has three readout modes: single 12bit high gain channel output, single 12bit low gain channel output. Dual 12bit high gain and low gain output mode.  Single channel output is 24FPS at 12-bits.  Dual-channel HDR output is 12FPS at 12-bits.

QHY42PRO has the GPS / Trig Signal interface. It can output the precise exposure starting/ending waveform for external measurement.  It can also connect with QHYCCD GPS-BOX to measure it. The QHYCCD GPS-BOX will output the timestamp onto the image head of each frame.



The QHY42PRO is a cooled scientific CMOS camera with extremely low (1.6e-) read noise. We also offer the QHY42-BSI in a UV enhanced version. The sensor array is 2048 x 2048 with relatively large 11um pixels and 89ke- full well capacity. The QHY42PRO is capable of high frame rates up to 24FPS at full resolution.

For BSI verson, there is three type of the coating of the sensor. TVBIS,UV,VIS. The TVBIS is the most popular type and it has the best QE of 95%. The UV version has a peak QE of 76% on the 275nm.  While the TVBIS version has also a high UV QE at 240nm. For UV application. Both TVISB and UV is possible to be use. You can select it according the QE curve. And the TVISB version has lower dark current than UV version. VIS version is not so popular and sometimes the sensor factory does no stock. So if you need the VIS version you need to quote QHYCCD for details.

The first version QHY42 is released in early 2018. And now we will release the enhanced version QHY42PRO. The different of QHY42 and QHY42PRO is that QHY42 only support the single ADC channel output (which called STD mode in the datasheet of Gsense400 , and 24FPS for 8bit/12bit . While the QHY42PRO support both STD mode and the dual channel ADC mode (HDR mode). The dual ADC can work together to sample the same pixels. And output two images. One is high gain and another is low gain. Which can enlarge the dynamic of the output data. The QH42PRO HDR mode will output the 4096*2048 image. Which consist two 2048*2048 image.   QHY42PRO also support the remote FPGA upgrade function via USB port. In future if there is any upgrade of the FPGA code, you can upgrade it directly without send back to factory to upgrade.



Model QHY42PRO-BSI / QHY42PRO-UV /QHY42PRO-FSI
COMS Sensor Gpixel GSENSE400 BSI / UV / FSI
Pixel Size 11um x 11um
Sensor Surface Glass Clear Glass / UV enhanced AR coating
Effective Pixel Area 2048 x 2048
Effective Pixels 4 Megapixels
Effective Image Area 22.5mm x 22.5mm
Fullwell 89ke-
A/D Dual 12-bit A/D (High Gain Channel and Low Gain Channel) *



Note: The QHY42 camera in stock is single channel outputs, it support 2048*2048 8/12bit single channel image output. The QHY42PRO camera has dual ADC channel with 2048*2*2048 8/12bit HDR image output.  The QHY42 user can be upgraded without cost after QHY42PRO released.

Sensor Size Typical 2-inch
Full Frame Rate and ROI Frame Rate QHY42
24FPS@2048*2048 12bit (STD mode)
24FPS@2048*2048 8bit  (STD mode)QHY42PRO
24FPS@4096*2048 dual 8bit  (HDR mode)
12FPS@4096*2048 dual 12BIT (HDR mode)
48FPS@2048*2048 8bit (STD mode)
24FPS@2048*2048 12BIT (STD mode)
Readout Noise 1.7e-
Dark Current TBD
Exposure Time Range 20us-300sec
Anti-Glow Control Yes. Can be enabled and disabled. Significant Glow Reduction
Shutter Type Electric Rolling Shutter
Computer Interface USB3.0
Built-in Image Buffer 128MByte(512Mb) DDR2 memory in QHY42/PRO

Cooling System Dual Stage TEC cooler(-35C below ambient)
Anti-Dew Heater Yes
Telescope Interface M54/0.75 female thread on the fast installer/center adjust ring
Optic Window Type AR+AR High Quality Multi-Layer Anti-Reflection Coating
Back Focal Length 17.5mm(±0.5)
Weigth 735g
