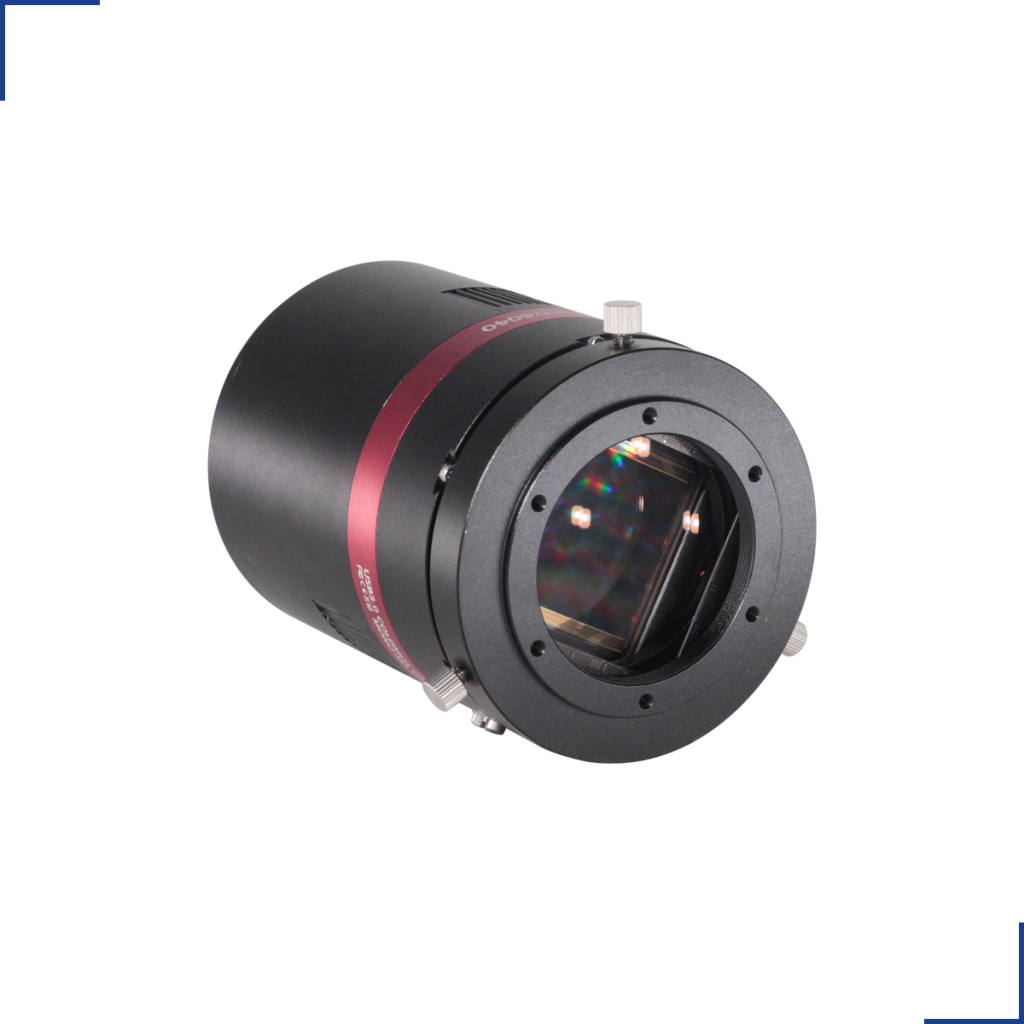

QHY4040 FSI Class 2 CMOS IMAGER



QHY4040/QHY4040PRO is a scientific cooled CMOS camera with GSENSE4040 4K*4K sCMOS sensor. It has a 36.9mm x 36.9mm square sensor with 9.0um pixels in a 4k x 4k array. It has a 36.9*36.9mm big image area. 9um pixel size.

QHY4040/PRO has both the FSI version and BSI version. FSI version has a peak QE of 74%, 70ke full-well (at the lowest gain), 4e readout noise (at the highest gain). BSI version has a peak QE of 90%, 39ke full-well (at the lowest gain), 2.3e readout noise(at the highest gain), and a wide spectrum from UV to Near IR.

QHY4040 has only the FSI version, supports a single 12BIT channel readout (high gain channel only). QHY4040PRO has both FSI version and BSI version, supports selectable dual 12bit  channel output (high gain, or low gain), and also supports the on-camera dual 12bit to 16bit data combination process.

The standard version is two-stage TEC cooling with air cooling. QHYCCD can provide the water cooling version as requested.

The typical application of this camera is astronomy imaging, spectrum, dynamic x-ray DR, satellite tracking, etc.



Model QHY4040 QHY4040PRO-FSI QHY4040PRO-BSI
CMOS Sensor Gpixel Gense4040 FSI / BSI version
Pixel Size 9.0um x 9.0um
CMOS Chamber Optic window glass AR+AR multiple layer coating anti-reflection glass
Sensor Size 36.9mm*36.9mm
Effective Pixel Area 4096 x 4096
Effective Pixels 16.8 Megapixels
Effective Image Area 36.9mm x 36.9mm
Fullwell Only supports Low Gain channel 26ke- High Gain Channel >70ke





Low Gain Channel 26ke.

36ke-
AD Sample Depth Dual 12bit ADC. Only output high gain channel. Dual 12bit ADC
(1)Dual Channel Output Together Mode.
(2)Single Channel Mode (High Gain Channel and Low Gain Channel Seletable)
(3)Dual 12bit Combine to 16BIT Image mode.
Dual 12bit ADC
(1)Dual Channel Output Together Mode.
(2)Single Channel Mode (High Gain Channel and Low Gain Channel Seletable)
(3)Dual 12bit Combine to 16BIT Image mode.
Full Frame Rate 20FPS@4096*4096 8bit (Clock Speed 4)
18FPS@4096*4096 8bit (Clock Speed 3)
16FPS@4096*4096 8bit (Clock Speed 2)
12FPS@4096*4096 8bit (Clock Speed 1)
8FPS@4096*4096 8bit (Clock Speed 0)
8FPS@4096*4096 12bit (Clock Speed 0)
USB3.0 Mode
20FPS@4096*4096 8bit
13FPS@4096*4096 8bit10FPS@4096*4096 16bit and 8bit
8FPS@4096*4096 16bit and 8bit2*10Gbps Fiber Mode
24FPS@4096*4096 16bit
20FPS@4096*4096 16bit
13FPS@4096*4096 16bit
10FPS@4096*4096 16bit
8FPS@4096*4096 16bit
USB3.0 Mode
20FPS@4096*4096 8bit
13FPS@4096*4096 8bit10FPS@4096*4096 16bit and 8bit8FPS@4096*4096 16bit and 8bit2*10Gbps Fiber Mode
24FPS@4096*4096 16bit
20FPS@4096*4096 16bit
13FPS@4096*4096 16bit
10FPS@4096*4096 16bit
8FPS@4096*4096 16bit
Readout Noise FSI version
Typical 4e- @ Gain31 (16.5x)
FSI version
Typical 4e- @ Gain31 (16.5x)
BSI version
Typical 2.3e- @Maxium Analog Gain
Dark Current FSI version
0.05e/pixel/sec @ -15C
FSI version
0.05e/pixel/sec @ -15C
BSI version
TBD
Exposure Time Range 20us – 600sec
Shutter Type Electric Rolling Shutter
Computer Interface USB3.0 ONLY USB3.0  +  2*10Gbps Filber USB3.0  +  2*10Gbps Filber
Built-in Image Buffer QHY4040
128MB DDR2 Memory
2GByte (16Gbit) DDR3 Memory 2GByte (16Gbit) DDR3 Memory
Exposure Ending Hardware Pulse Output Optional TrigOut and Shutter Measure waveform
GPIO Four High Speed FPGA Controlled GPIO . Can be used for high precise GPS timestamp socket. Or the Electric Shutter on/off waveform output for GPS Card. Or Multiple Camera Synchronized Port and so on.
Cooling System Dual Stage TE Cooler(-35C below ambient)
The QHY4040 water-cooled customized version has a maximum temperature difference of -40 degrees in continuous mode and single frame mode with an exposure time greater than 1 second.
Cooling Default setup is fan cooling. QHYCCD also supply the water cooling version.
Humidity Sensor QHY4040PRO has the humidity Sensor in CMOS chamber QHY4040PRO has the humidity Sensor in CMOS chamber
Anti-Dew Heater Yes
Telescope Interface M54/0.75 female thread on the fast installer/center adjust ring
Optic Window Type AR+AR High Quality Multi-Layer Anti-Reflection Coating
Back Focal Length 17mm(±0.2)
Weigth  785g 1.05kg 1.05kg
