QHY163M + QHYCFW3M-US COMBO (7x36mm)
- Manufacturer: QHY
- MPN: 163MCOMBO
- SKU: QHY163MCOMBO
- Last price was: $1,399.00
-
Availability: Backorder
Click here if you want to be notified as soon as we get this product in stock again.

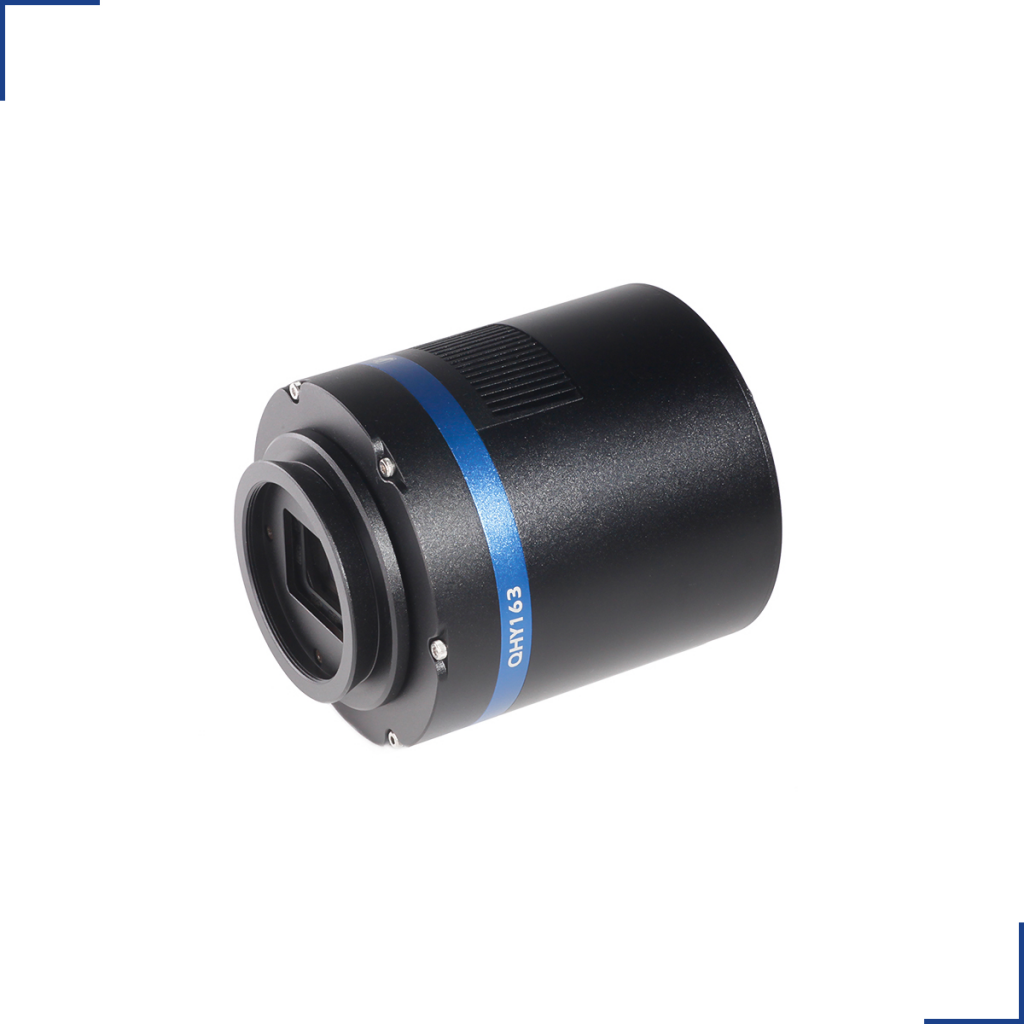

QHY CCD QHY163M, Cooled USB 3.0 Planetary and Deep Sky COLDMOS Camera
The QHY163M/C camera is an incredible value. It uses a relatively large 4/3inch, 16 Megapixel CMOS sensor, available in both monochrome and color. The QHY163M/C has exceptionally low readout noise (as low as 1 electron!), low dark current and two-stage cooling capable of reducing the sensor temperature to -40C below ambient. The sensor chamber is sealed and the optical window is heated to prevent dew. The camera's interface is USB 3.0 and delivers 23FPS@16 megapixel full resolution output, 30FPS@4K HD video output.
128MB DDR Buffer
The QHY163 has a built-in 128MB DDRII image buffer. The benefit of the image buffer is that the memory will cache the image and transfer it to the computer when the USB interface is not busy or being interrupted, and the frame will not be lost or corrupted. This buffer also allows a slower computer with USB 2.0 socket to capture every frame without loss even if the USB socket is occasionally busy with other peripherals. This buffer also helps multiple camera applications and avoids USB transfer problems. For example, it is possible to operate four QHY163M cameras on the same computer to create an LRGB imaging array.
Full Anti-Dew Solution
With more than a decade of experience designing cooled cameras, QHYCCD has applied this knowledge to the QHY163 camera. The full anti-dew technology includes a sealed CMOS chamber with silicon gel tube socket and a heated chamber optical window. This technology prevents dew from forming on the sensor itself, or on the chamber window, even in a high humidity environment.
|
QHY163M/C Camera Specification
|
|
|
CMOS Sensor
|
4/3 inch 16 Megapixel CMOS Sensor (Color/Mono)
|
|
Effective Pixels
|
4656 x 3522
|
|
Pixel Size
|
3.8um x 3.8um
|
|
Effective Area
|
17.7mm x 13.4mm
|
|
Shutter
|
Electronic Rolling Shutter.
|
|
FullWell
|
18-20ke Typical
|
|
QE
|
TBD
|
|
Readout Noise
|
2.4e@low gain 1e@high gain
|
|
System Gain
|
TBD
|
|
Unity Gain
|
TBD
|
|
Frame Rate (on 8bit)
|
22.5FPS@16MP, 30FPS@4K HD Video
57FPS@1920*1080, 60FPS@1280*1024
80FPS@1024*768, 100fps@800*600
|
|
ROI Support
|
Yes. Any Area ROI
|
|
Exposure Time
|
50us - 1800 sec
|
|
AD Sample Depth
|
10-bit/12-bit (8-bit/12-bit output)
|
|
In Camera Image Buffer
|
Yes, 128MB DDRII Buffer
|
|
Cooling
|
2-stage TEC, -40C below Ambient, typical.
Temperature Regulated
|
|
Power
|
USB Powered for camera and +12V powered for TEC
|
|
Anti Dew Control
|
Air Connector for removable silicon gel tube
Heat board for optic window of airproof CCD chamber
|
|
Computer Interface
|
USB 3.0 Super Speed
|
|
Telescope Interface
|
M42/0.75 & 2-inch adapter. Optional C-mount adapter
|
|
Color Wheel Port
|
4-pin QHYCFW2 socket
|
|
Guide Port
|
6-pin RJ11 Guide Port
|
|
Optic Window
|
AR+AR (Mono) IR+AR(Color)
|
|
Power consumption
|
TBD
|
|
Weight
|
450g
|
|
QHY163 Electric Interface
|
|
|
12V input with lock, USB3.0 socket, 4PIN QHYCFW, 6PIN RJ11
|
|
QHY 3RD GENERATION MEDIUM THIN THICKNESS FILTER WHEEL
Tech Specs:
- Model: QHYCFW3M-US
- Filter Wheel Thickness:17mm
- Disc Supported: 5 Position 2" & 5 Position 50mm Round & 7 Position 36mm
- Maximum Filter Thickness: 5.5mm
- Weight: 691 grams
