QHY CCD QHYOAG-M, Off Axis Guide, Medium
- Manufacturer: QHY
- UPC: 191149000966
- MPN: OAG-M
- SKU: OAG-M
- Last price was: $230.00
-
Availability: Backorder
Click here if you want to be notified as soon as we get this product in stock again.
QHY CCD QHYOAG-M, Off Axis Guide, Medium
QHY OAG - Thin and Flexible Setup

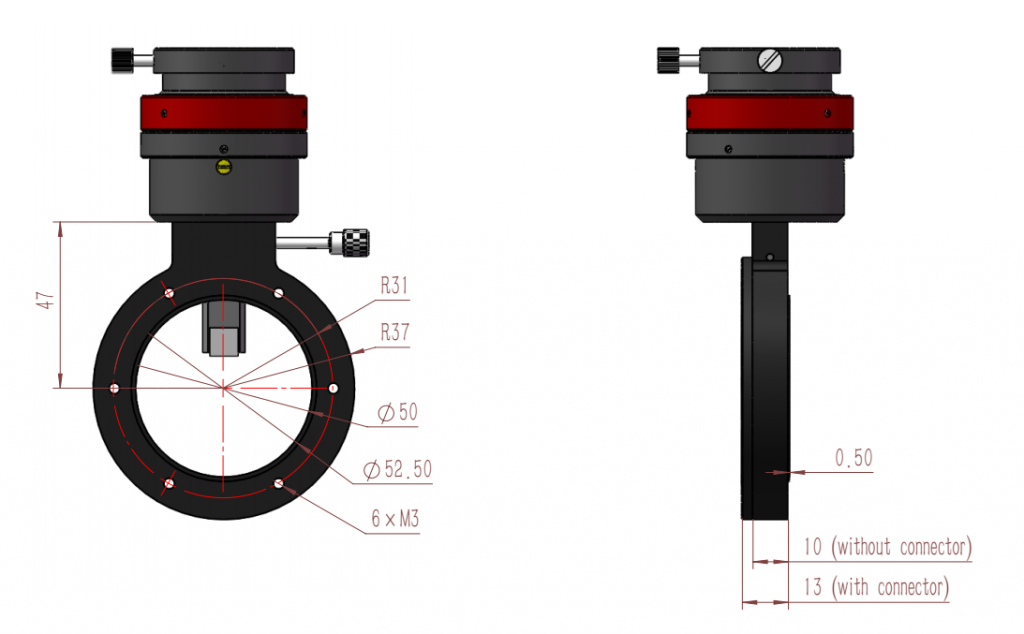

The QHYOAG is a thin and solid design. The OAG main body is just 10mm thick. Adding an M42 thread or M54 adapter ring adds only 3mm for a total thickness of 13mm. There are six 3mm through holes in the OAG for direct connection to the QHYCFW2 and QHY "A" series camera. If you do not have a QHYCFW2 or QHY "A" series camera, you can also use this OAG with a third part adapter ring on the camera side.
There are three models of QHYOAG: QHYOAG-S, QHYOAG-M, and QHYOAG-L for the different size sensors (See table below).
The QHYOAG comes with a multi-thread 1.25-inch focuser. The focuser has a locking thumbscrew to hold the guide camera fixed after focusing.
The prism position can be adjusted and can be locked to fix its position. The prism is 8mm x 8mm size and the aperature between the prism and mirror is 8mm in diameter.
Please Note: There is a different Medium Off Axis Guide specifically for the QHY16200A, which is UPC 191149000959.
|
QHY OAG Specification
|
|
|
Prism
|
8mm x 8mm Multi-Coated Prism
|
|
Through Hole Size
|
8mm diameter
|
|
Focuser
|
1.25-inch Multi-thread Focuser with 6mm range
|
|
Focuser Locker
|
Yes
|
|
Guide Camera Position Adjust
|
Yes
|
|
Directly Install Method
|
Six M3 screw to QHYCFW2 or QHY "A" series camera
|
|
Telescope Interface
|
M42/M54/M60 0.75 adapter ring (3mm thick)
|
|
Use for other camera
|
Yes, with third party M42/M54/M60 adapter ring on camera side
|
|
Thickness
|
10mm (without telescope adapter ring)
13mm (with telescope adapter ring)
|
|
The difference of Small Medium and Large Size
|
|||
|
|
QHYOAG-S
|
QHYOAG-M
|
QHYOAG-L
|
|
Telescope Adapter Ring
|
M42/0.75
|
M54/0.75
|
M60/0.75
|
|
The circle diameter of six M3 screw location
|
54mm
|
62mm
|
68mm
|
|
Compatiable Device
|
QHY(IC)90A
QHY(IC)695A
QHYCFW2-S
|
QHY(IC)16200A
QHYCFW2-M
|
QHY(IC)16803
QHYCFW2-L
|
|
Suitable CCD SIZE
|
2/3inch
1inch
4/3
|
APS-C
APS-H
36*24
|
36x24mm
37x37mm(16803)
48x36mm(50100,requires special adapter)
|
|
Weight
|
127g
|
145g
|
149g
|
