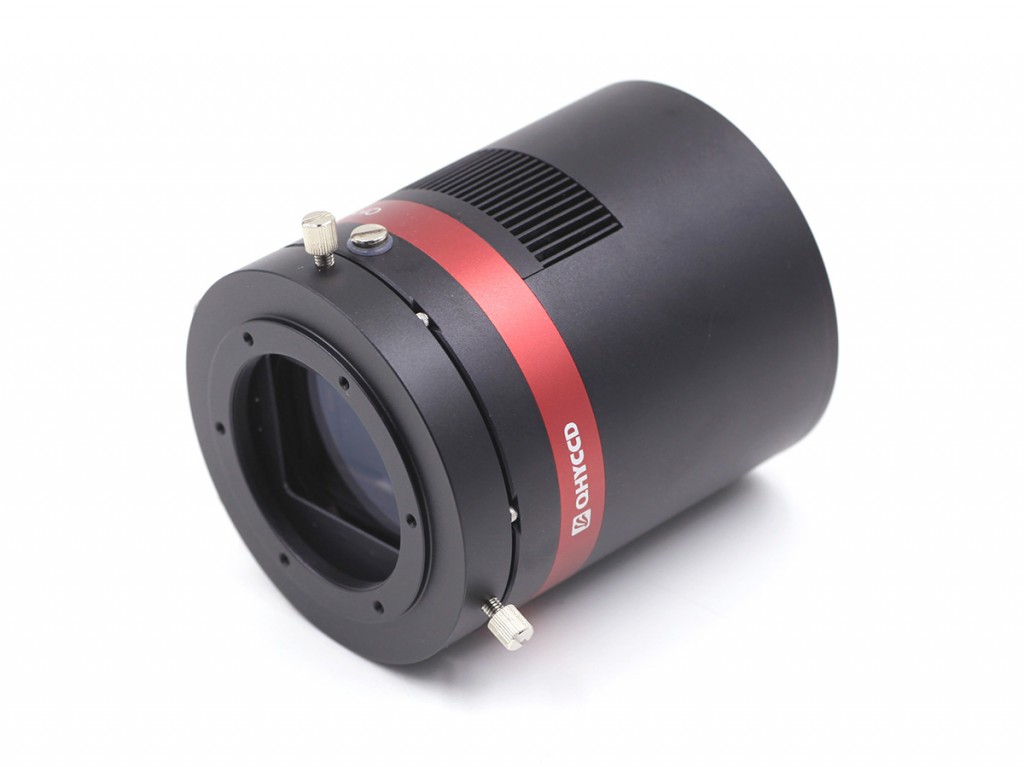

QHY CCD QHY128C, 24 Megapixel, 35mm Format, 36 x 24mm, Cooled, CMOS Color Camera
- Manufacturer: QHY
- MPN: 128C
- SKU: QHY128C
- Last price was: $3,149.10
- Availability: Please, email us for availability.
Click here if you want to be notified as soon as we get this product in stock again.
QHY CCD QHY128C, 24 Megapixel, 35mm Format, 36 x 24mm, Cooled, CMOS Color Camera
Ultra High Performance
The QHY128C uses the IMX128 full frame, 35mm format, 24 Megapixel, 14-bit CMOS sensor. This is the same sensor that is used in the Nikon D600 camera. It has 4e- read noise at lowest gain, 2.7e- read noise at unity gain (system gain = 1e-/ADU), 1.8e- at high gain, and high dynamic range of more than 14 stops.
True RAW Image Output
While the QHY128C has the same CMOS sensor as the Nikon D600 cameras, unlike these consumer DSLR cameras, the QHY128C offers True RAW Image output. In the DSLR implementation there is a RAW image output, but typically it is not completely RAW. Some evidence of noise reduction and hot pixel removal is still visible on close inspection. However, the QHY128C offers TRUE RAW IMAGE OUTPUT and produces an image comprised of the original signal only, thereby maintaining the maximum flexibility for post-acquisition astronomical image processing programs.
Unique Thermal Noise Reduction Technology
In addition to efficient 2-stage thermoelectric cooling, QHYCCD employs a unique thermal noise control technology to reduce CMOS sensor noise to a very low value without affecting the integrity of the raw image. This proprietary technology can be found to improve noise performance across the whole 165/168/247/367/128 product line, producing much better noise reduction than any competing camera model.
Zero Amplifier Glow
The QHY128C has zero amplifier glow no matter how long the exposure.
128MB DDRII Image Buffer
QHY128C has 128MB DDRII image buffer to cache the image and avoid the risk of a frame loss. The image data is stored in the DDR immediately after acquisition and then transferred to computer from the memory buffer. This avoids problems of a busy USB port when there are other peripherals using the same port as the camera.
Anti-Dew Technology
QHYCCD has more than 10 years of experience designing cooled cameras. The QHY128C receives the benefit of that decade of design work by featuring full anti-dew technology for both CCD sensor cover glass and the sensor chamber optical window. The QHY128C has an electric heating board for the chamber window to prevent the formation of dew and the sensor itself is kept dry with our silicon gel tube socket design for control of humidity within the sensor chamber.
AR+AR Optical Window
In order to avoid halos around bright stars the QHY128C has a AR+AR coated optical window rather than the common IR cut window for Single-Shot Color cameras. This permits full access to the red wavelength of H-alpha and SII without attenuation by the window coating. For RGB color balance, without passing the near IR wavelengths above 700nm, a separate removable 2-inch UV/IR filter with the desirable passband characteristics is placed in a custom filter holder in front of the camera
* Each camera is carefully calibrated at the factory with a high-precision axis measurement device. Orthogonal placement of the sensor is guaranteed to be flat to the image plane to better than +/-20um across the sensor from edge to edge, so there is no need to adjust for camera tilt absent mechanical errors elsewhere in the image train.
|
QHY128C Specification
|
|
|
CMOS Sensor
|
SONY IMX128 COLOR CMOS
|
|
CMOS Size
|
36mm x 24mm full frame
|
|
Effective Pixel
|
6036 x 4028 24 Megapixels
|
|
Photosensitive Area
|
36.03 x 24.05mm
|
|
Pixel Size
|
5.97um x 5.97um
|
|
Full Well
|
74ke-
|
|
Readout Type
|
Progressive Scan
|
|
Shutter
|
Electrionic shutter
|
|
Exposure Time
|
60us - 3600 sec
|
|
Max Frame Rate
(for both 8bit and 14bit)
|
5FPS@Full Reolusion
9FPS@2160 LINES (eg. 7400*2160, 4096*2160 etc)
16.5FPS@1080 LINES (eg. 7400*1080,1920*1080 etc)
22.5FPS@768 LINES
32FPS@480 LINES
|
|
Pixel Binning
|
1x1
|
|
Peak QE
|
53% (per sensorgen.info)
|
|
AD Convert
|
14-bit
|
|
Readout Noise
|
4e@Lowest gain. 2.7e@unity gain 1.8e@high gain
|
|
Maxium Dynamic Range
|
More than 17000. >14 stops
|
|
Mechanical Interface
|
M54/0.75 female thread (see mechanical drawing)
|
|
Optic window heater
|
Yes
|
|
TEC
|
2-stage TEC. -35C below ambinet
|
|
Optic Glass Window
|
AR+AR Clear glass
|
|
Silicon gel socket
|
Yes
|
|
Weight(Camera only)
|
788g
|
|
Power Consumption
|
~30Watts @ 100% TEC. 13 Watts @ 50%TEC
|
|
Computer interface
|
USB 3.0 12V DC Power socket with lock (2.1mm)
|
QHY165C/168C/247C/367C with QHYOAG-M and QHY5L-II Guider Kit (above)
|
QHY128C Connection Combination Table Part - 1
|
|||||
|
Camera body
only
|
Camera
connected with M54/0.75 female adapter
|
Camera
connected
with 2 inch
to T adapter
|
Camera connected with
QHYOAG-M and 2inch Tring
|
Camera
with 2inch filter holder for flat field corrector solution
|
Camera
connected with
QHYOAG-M,2inch filter holder and flat field corrector soluiton
|
|
100093
（18±0.5）
|
100093
（18±0.5）
|
100093
（18±0.5）
|
100093
（18±0.5）
|
100093
（18±0.5）
|
100093
（18±0.5）
|
|
|
|||||
|
|
|
||||
|
|
|
|
|||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
In Standard Package
|
In Standard Package
|
In Standard Package
|
Need to order Optional Part
|
Needt to order Optional Part
|
Need to order Optional Part
|
|
2 inch infrared
filter can be installed on the 2 inch to T adapter (M48 thread)
|
* This part can either be used or not used
** 2 inch infrared filter can be installed on the 2 inch to T adapter (M48 thread)
|
2 inch infrared filter can be installed on the position shown in
diagram |
* This part can either be used or not used
** 2 inch infrared filter can be installed on the position shown in diagram
|
||
|
|
|
||||
 |
 |
 |
 |
 |
|
|
The values in the brackets are the increment in the back focal length. Add these values together to get the total back focal length. The six-figure numbers are the unique serial numbers for QHYCCD accessories. You can find details for these parts here:
Mechanical Part Order List |
|||||
|
QHY128C Connection Combination Table Part - 2
|
|||||
|
QHY128C
CANON LENS
|
QHY128C
NIKON LENS
|
||||
|
100093
（18±0.5）
|
100093
（18±0.5）
|
||||
|
|
|
||||
|
Need to order Optional Part
|
Need to order Optional Part
|
||||
|
* The two inch infrared filter can be installed on the position shown
|
* The two inch infrared filter can be installed on the position shown
|
||||
|
|
|
|
|
|
|
|
The values in the brackets are the increment in the back focal length. Add these values together to get the total back focal length. The six-figure numbers are the unique serial numbers for QHYCCD accessories. You can find details for these parts here:
Mechanical Part Order List |
|||||
Galloping Horsehead Captured by WuZheng with QHY128C and Celestron RASA telescope.
Seagull Nebula Captured by WuZheng with QHY128C and Celestron RASA telescope
M31 Captured by WuZheng with QHY128C and Celestron RASA telescope
M31 Captured by WuZheng with QHY128C and Celestron RASA telescope
