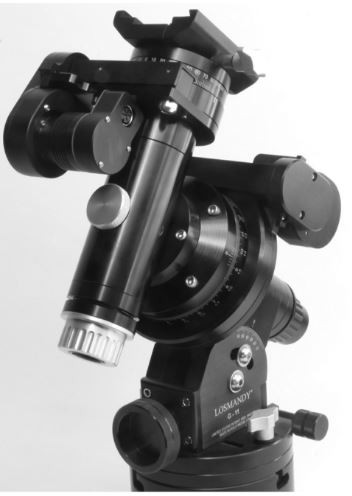

Losmandy GM-8 Gemini 2 Equatorial Mount, 11RA/8DEC, LW Tripod


Price: $2,895.00


  • Manufacturer: Losmandy
  • MPN: GM811G
  • SKU: GM811G
  • Availability: Ships from Warehouse / Call or Email for Availability

Includes Equatorial Head, 11RA/8DEC, Gemini 2 Go-To, Counterweight Shaft, 11 LB Counterweight, Lightweight Tripod



GM811GT Features

  • Photographic instrument weight capacity 50 lbs
  • Low temperature operation: 0 F
  • Equatorial Head Weight 27 lbs
  • Removable counterweight shaft with safety stop; 1.25" diameter
  • Includes one 11 lb weight
  • Saddle plate works with both Losmandy Style and Vixen Dovetail
  • Dovetail plate drops in and locks allowing for interchanging of any tube assembly - reduces the need for DEC weights.
  • All machined aluminum and stainless steel, black anodized.
  • All stainless steel hardware.
  • Variable slip clutch one knob per axis design.
  • Through the axis polar scope mounting, works in Northern and Southern Hemisphere. Polar scope optional.
  • 7 lb and 21 lb extra counterweights available



SPECIFICATION: R.A. AXIS

  • All machined aluminum and stainless steel, black anodized.
  • All stainless steel hardware.
  • One 3.750” diameter needle thrust bearing.
  • One 2.000” diameter needle thrust bearing.
  • Two 1.500” diameter needle bearings.
  • 5.625” diameter, 7075 aluminum worm gear, 360 tooth.
  • Dual supported, ball bearing housed ground High Precision Brass Worm.
  • Variable slip clutch one knob per axis design.
  • 1.250” diameter stainless steel shaft.



SPECIFICATION: DEC AXIS

  • All machined aluminum and stainless steel, black anodized.
  • All stainless steel hardware.
  • One 2.100" diameter needle thrust bearing.
  • One 2.000" diameter needle thrust bearing.
  • Two 1.500” diameter needle bearings.
  • 2.812" diameter, 7075 aluminum worm gear, 180 tooth.
  • Dual supported, ball bearing housed ground High Precision Brass Worm.
  • Variable slip clutch one knob design.
  • Porter Slip Ring Design
  • 1.250" diameter aluminum shafts.
