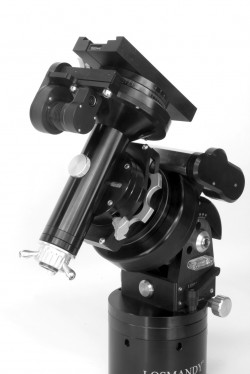

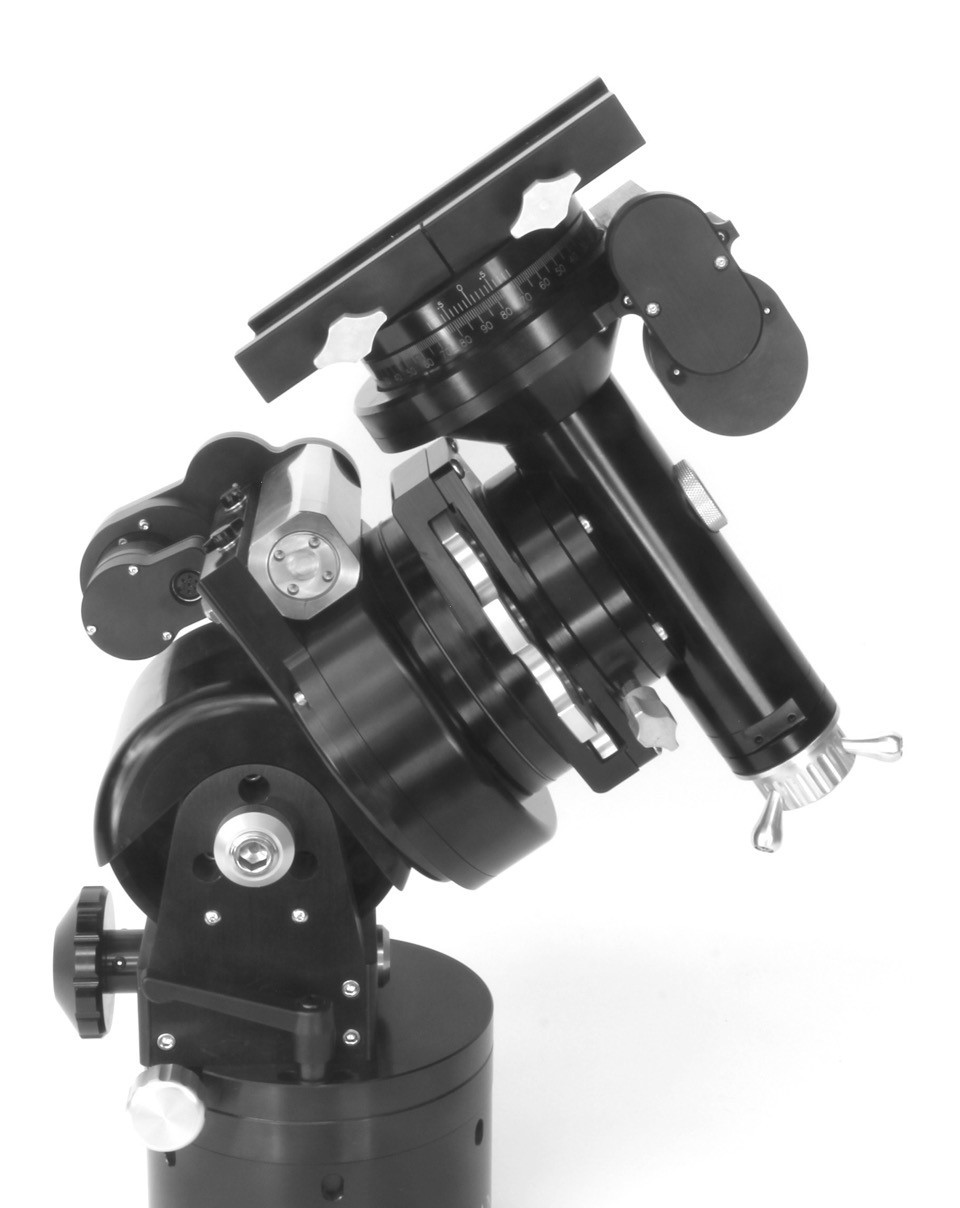

Losmandy G-11GT Gemini 2 Equatorial Mount, TITAN RA/11 DEC, HD Folding Tripod


Price: $4,445.00


  • Manufacturer: Losmandy
  • MPN: G11T
  • SKU: G11T
  • Availability: Ships from Warehouse / Call or Email for Availability

The G11GT weighs 64 lbs, has a load capacity of 75 lbs, and a gear diameter of 172mm.  Now featuring tucked-in motors!



G11GT FEATURES

  • Photographic instrument weight capacity 75 lbs
  • Tracking: +/- 5 arc sec. or better
  • Low temperature operation: 0 F
  • Equatorial Head Weight 62 lbs.
  • Splits into two pieces for transport: R.A. 44 lbs and DEC. 18 lbs
  • Removable counterweight shaft with safety stop; 1.25” diameter
  • Includes one 21 lb weight
  • Split dovetail saddle plate design. Works with both Losmandy Style and Vixen Dovetails
  • Dovetail plate drops in and locks allowing for interchanging of any tube assembly - reduces the need for DEC weights.
  • Off axis polar scope, works in Northern and Southern hemisphere (Polar Scope Optional)
  • 7 lb and 11 lb extra counterweights available



SPECIFICATION: R.A. AXIS

  • All machined aluminum and stainless steel, black anodized.
  • Shaft 1.96” diameter stainless steel tubing, .250” wall thickness
  • Worm Gear 6.750” diameter, 270 tooth, 7075 aluminum - special coating
  • Worm precision ground brass
  • Single piece worm housing construction, double ended, ball bearing supported with adjustable preload
  • 5.062” diameter needle thrust bearings
  • 3.500” diameter sealed ball bearings
  • 3.100” diameter sealed ball bearings for worm gear.
  • Fully locking, unique tangent arm design altitude adjustment, 12-70 degrees, large knob for easy alignment.
  • Laser engraved latitude scale in 2 degree increments.
  • Single knob azimuth control, bi-directional +/- 10 degrees, X/Y axis leveling bubbles.
  • Variable slip clutch, 6.0” diameter one knob design.
  • 360 degree DEC. axis rotation allowing for continuous photographing through the meridian.
  • Fully enclosed R.A. worm gear.
  • RA Axis weight 44 lbs.



SPECIFICATION: DEC AXIS

  • All machined aluminum and stainless steel, black anodized.
  • All stainless steel hardware
  • One 3.750” diameter needle thrust bearings
  • One 2.000” diameter needle thrust bearings
  • Two 1.500” diameter needle bearings
  • 5.625” diameter, 7075 aluminum worm gear, 360 tooth
  • Dual supported ball bearing housed ground High Precision Brass Wrom.
  • Variable slip clutch, one knob design.
  • 1.250” diameter stainless steel shaft.
  • DEC. Axis weight 18 lbs.



FOLDING HD TRIPOD

* All machined aluminum, black anodized

* Tripod height, adjustable from 33” - 48”

* Folding leg design for easy transporting.

* Tripod weight 35 lbs.
