Losmandy AZ8 Alt / Az Mount


Price: $995.00


  • Manufacturer: Losmandy
  • MPN: AZ8
  • SKU: AZ8
  • Availability: Ships from Warehouse

SPECIFICATIONS



•All machined aluminum and stainless steel, black anodized.
•All stainless steel hardware.
•One 2.100” diameter needle thrust bearing.
•One 2.000” diameter needle thrust bearing.
•Two 1.500” diameter needle bearings.
•360 degree slow motion control, both axes
•2.812” diameter, 7075 aluminum worm gear, 180 tooth.
•Dual supported, ball bearing housed ground High Precision Brass Worm.
•Variable slip clutch, both axes. One knob per axis design.
•3.5” diameter Laser engraved setting circles.
•Bubble level
•1.250” diameter aluminum shafts.
•Twin saddle plates. Accepts Losmandy D & V series dovetail plates.
•Instrument Weight Capacity 35 LBS per side.
•Head weight 13 lbs.
•Tripod with 6” riser. Adjustable from 29” to 46”
•Tripod weight 13 lbs.

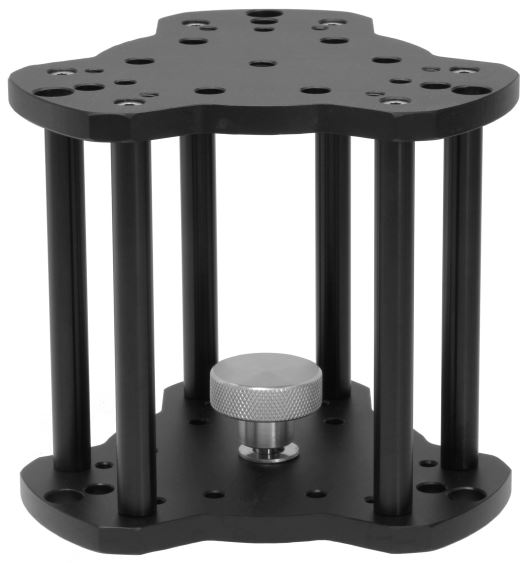

Optional:  additional 6-inch riser(s)
