iOptron Permanent Pier - Choose Your Height - 8038



iOptron Permanent Piers - Choose Your Height

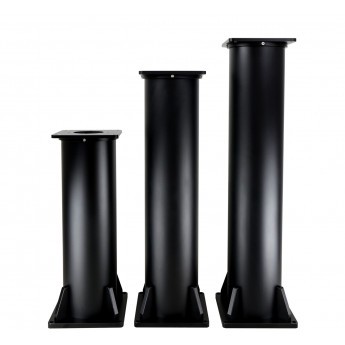

iOptron Permanent Piers have a weight capacity of 360 pounds and are offered in three different heights:

    • 23.6" (600mm)
    • 31.5" (800mm)
  • 35.4" (900mm)

These aluminum alloy piers have walls that are 1/4" thick, increasing stability and reducing vibrations. Four (4) aluminum struts have been welded between the tube and the base to eliminate side flexure, especially when under off-center or heavy loads. You can check out a CAD drawing of the base plate by clicking on the "Files" tab above.

The Permanent Pier comes with a CEM120 mounting plate. If you would like a custom mounting plate, please discuss your options with your High Point customer service representative as there will be an additional charge. Finally, if you would like a custom height permanent pier, choose that option in the drop-down and write in the height in inches in the provided field. We will contact you with finalized shipping fees, an ETA on your order, and any other questions we may have. In the meantime, feel free to contact us by phone, chat or email if we can help you in any way. Thanks.

Specifications

    • Pier Diameter: 7-1/8" (181 mm)
    • Pier Wall Thickness: 1/4" (6.35 mm)
    • Pier Top Plate: 8-1/4" x 8-1/4" (210 mm x 210 mm)
    • Max Payload: 350 pounds (165 kg)
    • Material: Aluminum Alloy, CNC, Anodized
  • Warranty: One Year Limited
