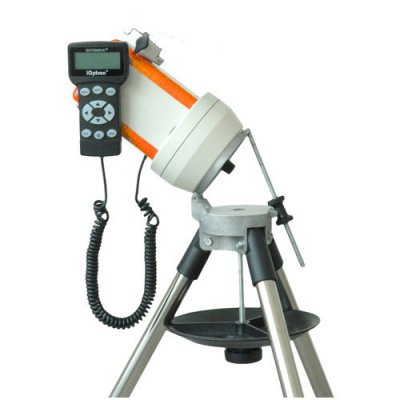

iOptron Cube-A Mount


Price: $420.00


  • Manufacturer: iOptron
  • MPN: 8600
  • SKU: 8600
  • Availability: Ships from Warehouse

 iOptron Dual Mount: Alt-Azimuth & German Equatorial – The Cube™


The SmartStar™ CubeTM-A comes with our patented Dual Mount: Alt-Azimuth & German Equatorial, a.k.a. The Cube™. This compact mount design is probably the most functional and flexible unit on the market. Both axis motors are built into a small single unit which is universally compatible with all telescopes using a dove-tail connection. The mount can be level for Alt-Azimuth or locked into position for German Equatorial. In addition, there are no “dead spots” – so you can point your telescope to ANYWHERE above the horizon, whereas, other mounts block the telescope tube at certain points of rotation. This mount also comes standard with AC connection. An optional DC adaptor is available so you can plug your telescope motor into your car if you’re camping or at any remote location.


The most easy to understand controller on the market


The GoToNovaTM Controller is much easier to use than other similar products. The hand controller is more intuitive with menu categories better organized. It also has the largest LCD screen on the market with 8 lines of content compared with others that only have 2 lines. Using the easy-to-use hand controller, you can easily set up your telescope and select where you want to go.


More precise speed control for viewing objects


The control system also allows you to slew the telescope at 9 different drive speeds, keeping the object within the telescope’s viewfinder for as long as you wish.


The #8401 hand controller comes with a USB port that tremendously expands the functionalities of the already powerful system. With the USB2COM driver installed, the USB port works as an RS232 serial port. It supports firmware upgrades and computer control. With ASCOM protocol, you can control your telescope with most ASCOM compatible software. This enables you to utilize the CPU, large screen, and disk space of your  PC/laptop. With a wide selection of software, your star gazing experience will never be the same again.


Stainless Steel Tripod


Made of 1-inch heavy-duty stainless steel the Cube™ Tripod is sturdy yet elegant, and gives the user unparalleled stability during operation.


GoToNovaTM Computerized Control System


The revolutionary GoToNovaTM computerized control system is by far the most technologically advanced automated tracking system available on the market today.  With a database of 130,000 celestial objects, including all of the most famous galaxies, nebulae, star clusters, not to mention the planets, you’ll be able to enjoy star gazing with the simple push of a button.


32-Channel GPS Module


All A-series telescopes come standard with a 32-channel GPS module for fully automated operation and alignment. Simply turn on the GoToNovaTM Controller and the GPS module will automatically synchronize your telescope location and time with the GoToNovaTM computerized control system. View celestial objects without having to manually punch in the date, time, latitude or longitude.

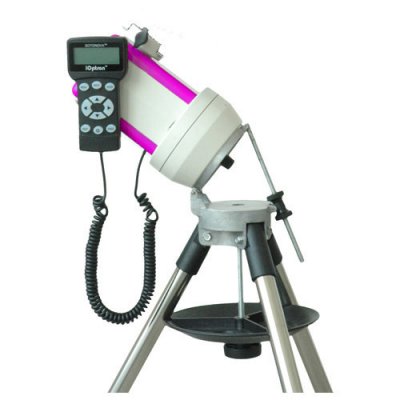

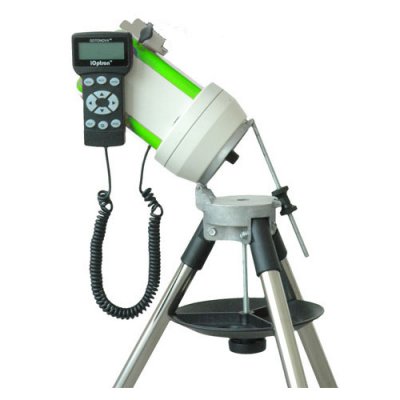

Available in 4 colors - please select from the drop down list box above.





Features:



  • Heavy duty stainless steel tripod
  • AltAzi-Equatorial Dual Mount– The Cube™-- The only mount of its kind for ultimate rotation
  • Includes the GoToNova® Controller. The most intuitive controller on the market.
  • ~130,000 object database plus 256 user-defined objects
  • The largest LCD screen on the market with 8 lines and 21-character Hand Control with backlit LED buttons.
  • USB Port for PC Laptop control and firmware upgrades
  • Drive motor with 9-speed setting for precise tracking
  • Dual-axis Servomotor
  • Standard-equipment AC connection (Optional DC adaptor available)
  • 32-Channel GPS
  • Payload: 7 lbs




Technical Specifications




Mount

AltAzimuth Equatorial Dual Mount

Motor

Dual-Axis DC Servomotor, DC12V

Speed

Dual-Axis, 9-Gear, Electronic (1×,2×,8×,16×,64×,128×,256×,512×,MAX)

Tracking

Automatic

Tripod

1” Stainless Steel

USB Port

Yes

Firmware Upgrade

Yes

PC Computer Control

Yes

Battery

AA x 8(Not Included)

GPS

32-channel GPS

Shipping Weight

15 lbs

Mount Weight

3 lbs 9.9 oz

Mount (Cube) Dimensions

8 ¾ x 5 x 5 inches

Tripod Weight

5 lbs 9.9 oz

Tripod Dimensions

Height (fully extended in azimuth): 42 ¾ inches

Height (collapsed): 27 ½ inches

Database

~130,000 objects plus 256 user-defined objects
