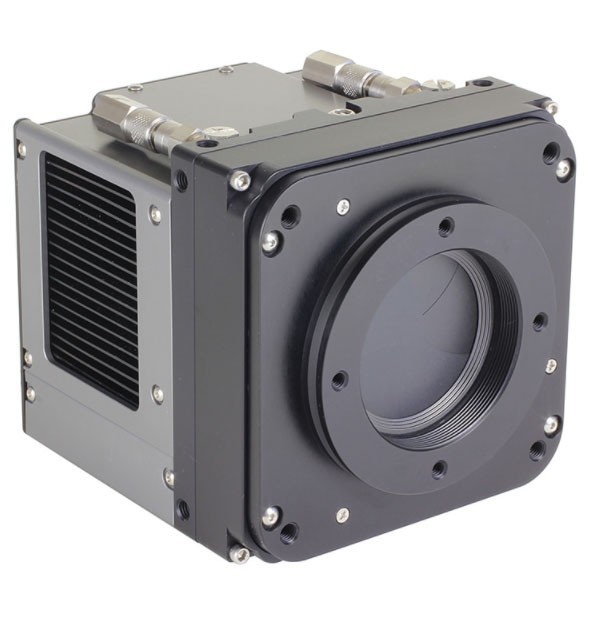

FLI - GSENSE4040 CMT FRONT ILUMINATED GRADE 1 MONOCHROME CCD CAMERA (65MM SHUTTER)
Price: $17,795.00
- Manufacturer: Finger Lakes Instrumentation (IDEX)
- MPN: KL4040-CMT G1 65mm
- SKU: KL4040-CMT G1 65mm
- Availability: In Stock
| Name | FLI - Gsense4040 CMT Front Iluminated Grade 1 Monochrome CCD Camera (65mm Shutter) |
|---|---|
| Manufacturer | Finger Lakes Instrumentation |
| Model | FLI-KL4040-CMT-G1-65MM |
| Computer Interface | USB 3.0 |
| Cooling | 40ºC Below Ambient |
| Dark Current | |
| Digitization Speed | 24 fps HDR |
| Dynamic Range | 86 dB HDR |
| Environment | -30ºC - 45ºC | 10% - 90% Relative Humidity |
| Focal Plane to Faceplate | 15.53 mm (optical; no shutter; no cover slip) |
| Full Well Capacity | 70000 e- |
| Housing | 4.0 x 4.0 x 4.17 (101.6 x 101.6 x 105.9) |
| Pixel Size | 9 μm |
| Power | 12V (100-240V AC to 12V DC power supply included). With TEC off: |
| Remote Triggering | Standard |
| Sensor | GPixel GSense4040 |
| Sensor Diagonal | 52.1 |
| Sensor Type | Front Illuminated |
| Shutter MTBF | 1,000,000 |
| Temperature Stability | 0.1ºC |
| Typical System Noise | 3.7 e- HDR |
| Video Size | 3.3" |
