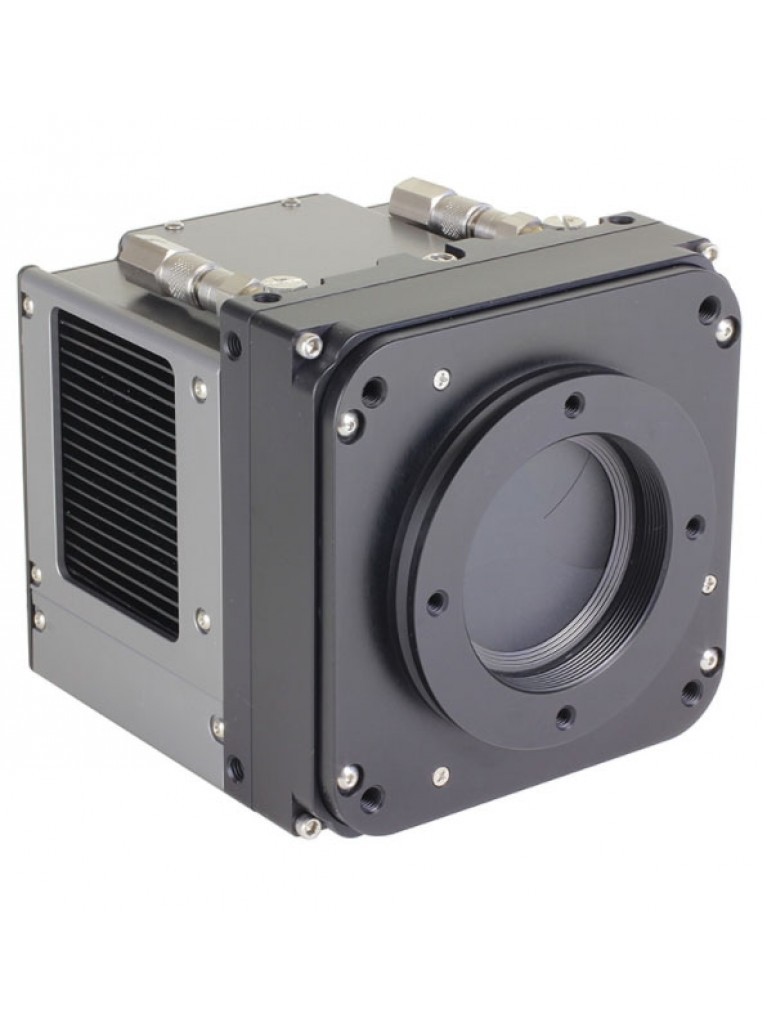

FLI - GSENSE4040 CMT FRONT ILLUMINATED GRADE 2 MONOCHROME CCD CAMERA
Price: $15,885.00
- Manufacturer: Finger Lakes Instrumentation (IDEX)
- MPN: KL4040-CMT G2
- SKU: KL4040-CMT G2
- Availability: In Stock
| Name | FLI - Gsense4040 CMT Front Illuminated Grade 2 Monochrome CCD Camera |
|---|---|
| Manufacturer | Finger Lakes Instrumentation |
| Model | FLI-KL4040-CMT-G2 |
| CCD Grade | 2 |
| Computer Interface | USB 3.0 |
| Cooling | 40ºC Below Ambient |
| Dark Current | |
| Digitization Speed | 24 fps HDR |
| Dimensions | 4.0 x 4.0 x 4.17 (101.6 x 101.6 x 105.9) |
| Dynamic Range | 86 dB HDR |
| Environment | -30ºC - 45ºC | 10% - 90% Relative Humidity |
| Focal Plane to Faceplate | 15.53 mm (optical; no shutter; no cover slip) |
| Full Well Capacity | 70000 e- |
| Non Linearity | <1% |
| Pixel Size | 9 μm |
| Power | 12V (100-240V AC to 12V DC power supply included). With TEC off: |
| Remote Triggering | Standard |
| Sensor | GPixel GSense4040 |
| Sensor Diagonal | 52.1 |
| Sensor Type | Front Illuminated |
| Shutter | Optional 65mm sold separately |
| Shutter MTBF | 1,000,000 |
| Shutter Type | Rolling |
| Temperature Stability | 0.1ºC |
| Typical System Noise | 3.7 e- HDR |
| Video Size | 3.3 |
