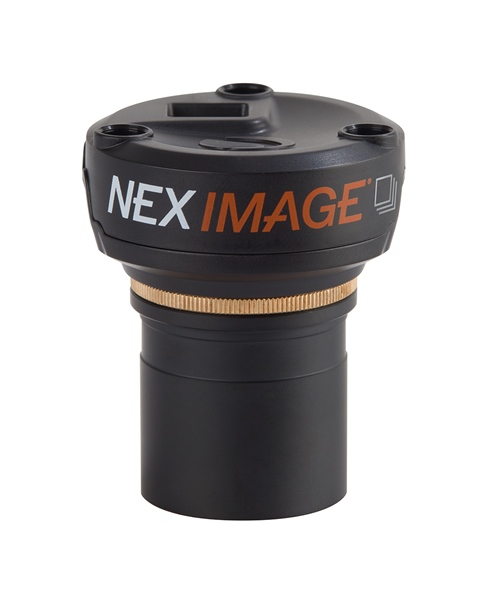

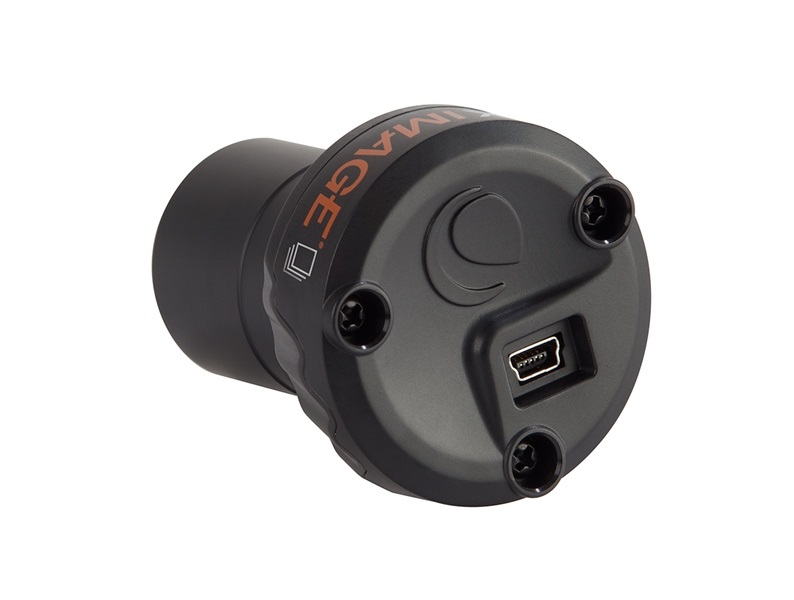

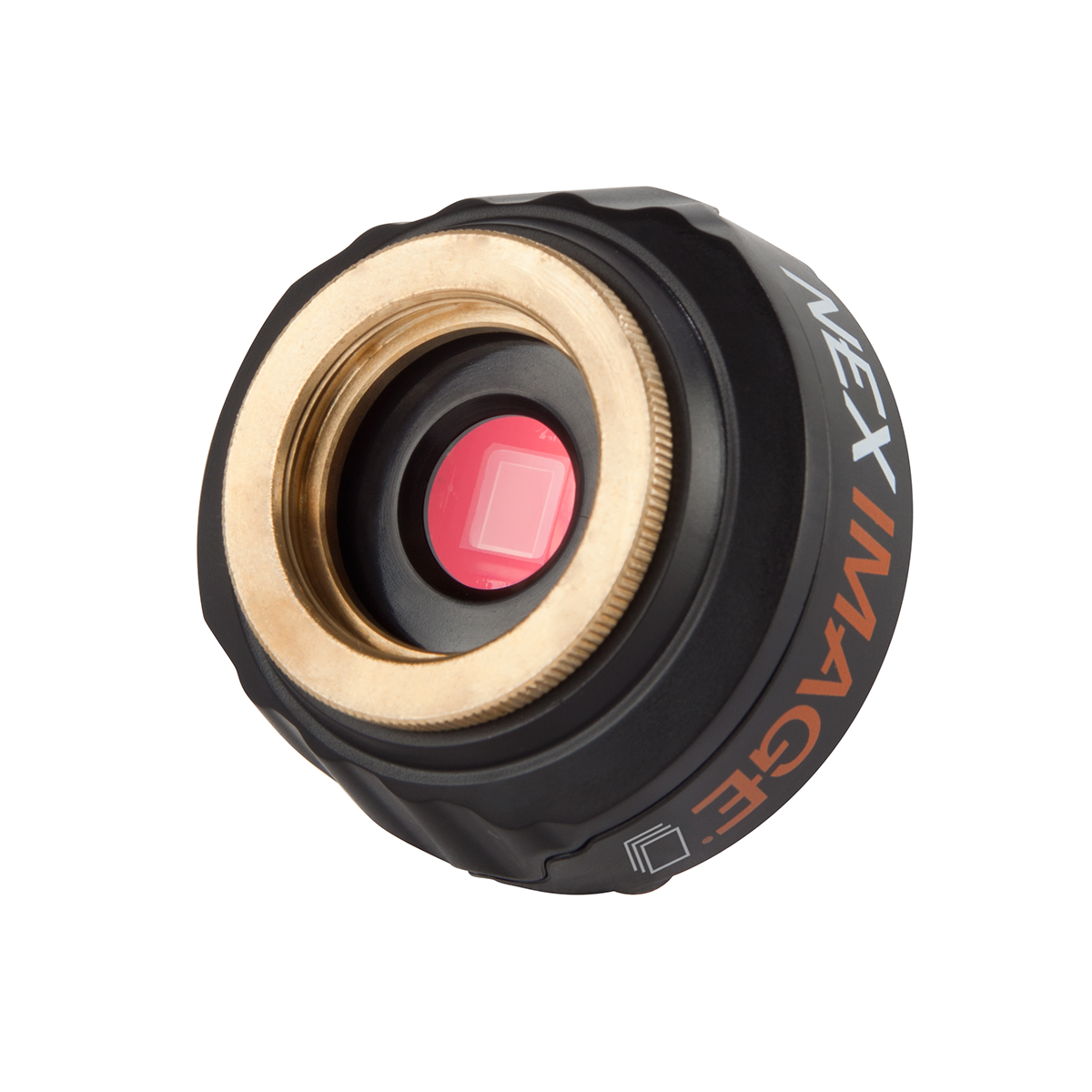

Celestron NexImage Burst- Color Imager



Ultra-Sensitive Aptina AR0132 CMOS Sensor
CMOS technology is emerging as the hottest trend in imaging, and Aptina’s AR0132 sensor leads the way. This updated version of the popular MT9M034 sensor offers the perfect combination of speed, sensitivity, and value. You won’t find the Aptina AR0132 sensor for a better price anywhere than NexImage Burst.


NexImage Burst Color is a one-shot color camera, allowing you to capture full-color images instantly. There's no need to image the same target multiple times to capture different colors. You also won't need to invest in filters and a filter wheel.


A Great Choice for Those New to Imaging
Getting started with NexImage Burst is as easy as pointing your telescope at the Moon, Sun, or a planet and recording a video. For the sharpest possible images, NexImage Burst can record more than 120 frames per second when subframed.


The included software analyzes each frame of video, throws away the ones affected by atmospheric turbulence, and perfectly aligns the best frames. The result is a bright, clear astroimage with impressive detail.


Solar system imaging with NexImage Burst is a great way to enjoy the hobby of astroimaging if you live in a light-polluted area. If you can see the planet the sky,


FEATURES


  • Features the Aptina AR0132 CMOS imaging sensor, a state-of-the-art chip used by imaging companies worldwide.
  • View and capture live video of the Sun, Moon, and planets on your computer.
  • Manually adjust gain, exposure time, frame rate and color balance.
  • Machined aluminum 1.25" adapter barrel with C-threads for direct threaded connection to almost any telescope.
  • Included software automatically removes video frames affected by unstable air, leaving only the sharpest, clearest frames to be stacked and aligned into one high-quality image (compatible with PC only).
SPECIFICATIONS



  • A/D Conversion: 12 bit
  • Back Focus Distance: 13.1 mm with nosepiece, 10.6 mm without nosepiece
  • Exposure Range: 0.0001 to 1 second
  • Imaging Sensor: Aptina AR0132AT CMOS (Color)
  • Mounting: 1.25" barrel and C-thread
  • Operating Environment: 40° C to -40°C
  • Shutter: Rolling
  • Software Compatibility: iCap, IC Capture, DirectShow, FireCapture
  • Sub-Framing: Hardware selectable
  • Weight: 2 oz (57 g)
  • Power Requirements: Powered by USB
  • Camera Resolution: 1280 x 960
  • Sensor Size: 3.54mm x 2.69mm
  • Pixel Size: 3.75 micron square
  • Frames per Second: Over 120 (30 fps at full frame)
  • USB Connection: High-speed 2.0, 10' cable length
