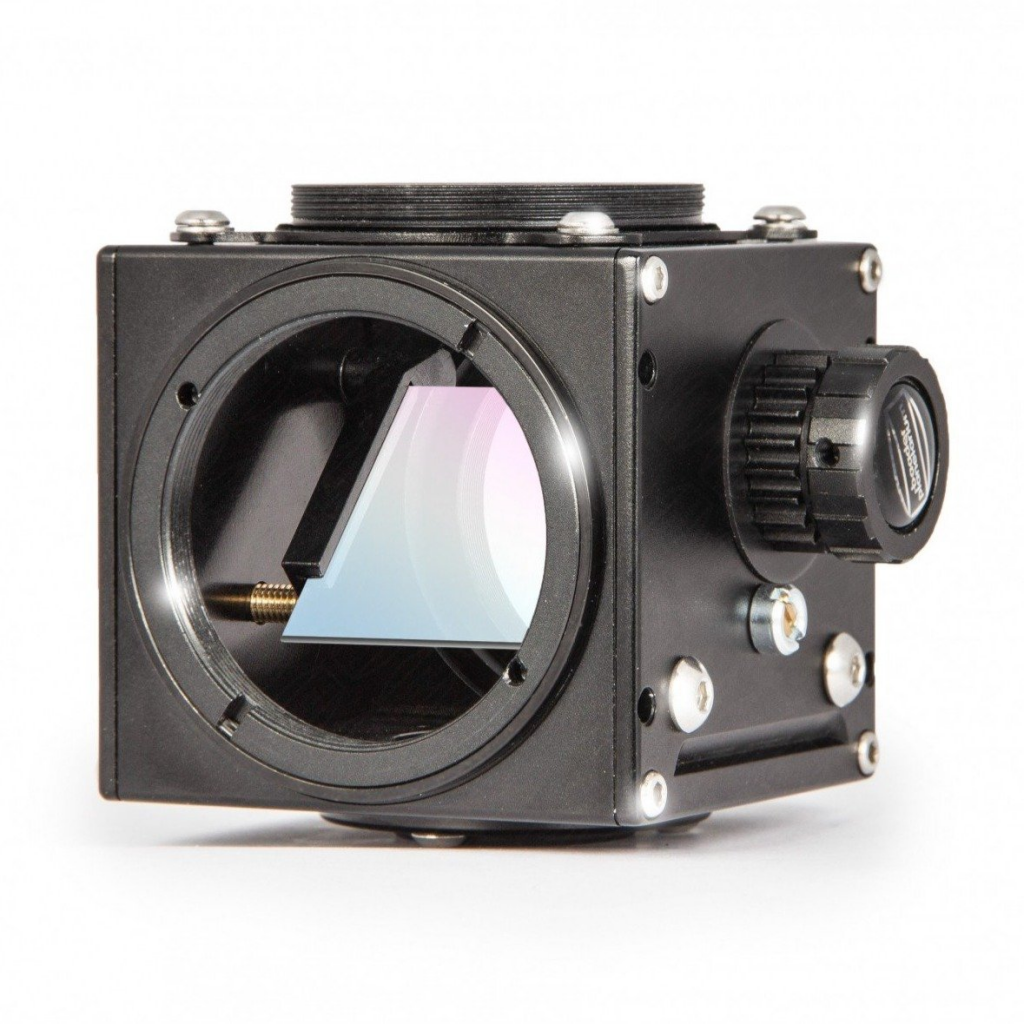

Baader FlipMirror II Star Diagonal



  • Baader-FlipMirror II Star Diagonal (BFM II) with three ports:Precise surface-mirrored flip mirror with multi-layer Al coating, for high-resolution images with cameras with small pixels
    • Straight-through (S52, M48 and T-2 on both sides) for full-frame camera, spectrograph, or other instruments
    • Adjustable T-2 thread on top for eyepiece clamps, video modules (up to 32 mm image circle) or even a binoviewer
    • Bottom flange for the optional Off Axis Guider for Baader FlipMirror II (BFM-OAG) (#2956951) or for an optional calibration lamp for quick calibration of spectra without removing the spectrograp



  • The back of the flip mirror is also Al coated and masked to direct the light of an optional calibration lamp onto the slit of a spectrograph
  • Enables precise adjustment of all light paths
  • Shortest possible overall length for any application – compatible with a large number of adapters from the Baader Astro T-2 system, the M48 system and the UFC system (Universal Filter Changer)
  • Rotatable M48 connection rings made of hardened, stainless steel on front and rear, backlash-free adapted to the BFM housing. Can be fixed in the optimum position to rotate any accessory around the optical axis.
  • Prepared for an optional toothed belt for motorization (e.g. by Steeldrive II motor focuser with Controller (#2957165) – basic requirement for image acquisition, guiding and spectroscopy in remote observatories
